Elitech ECB-1000Plus Single-phase Plastic Electric Control Panel With Refrigeration 3HP, Defrost, Fan, Light and Alarm Output, 100-256VAC, With Temperature Sensor, Evaporator Defrost Sensor, Digital S

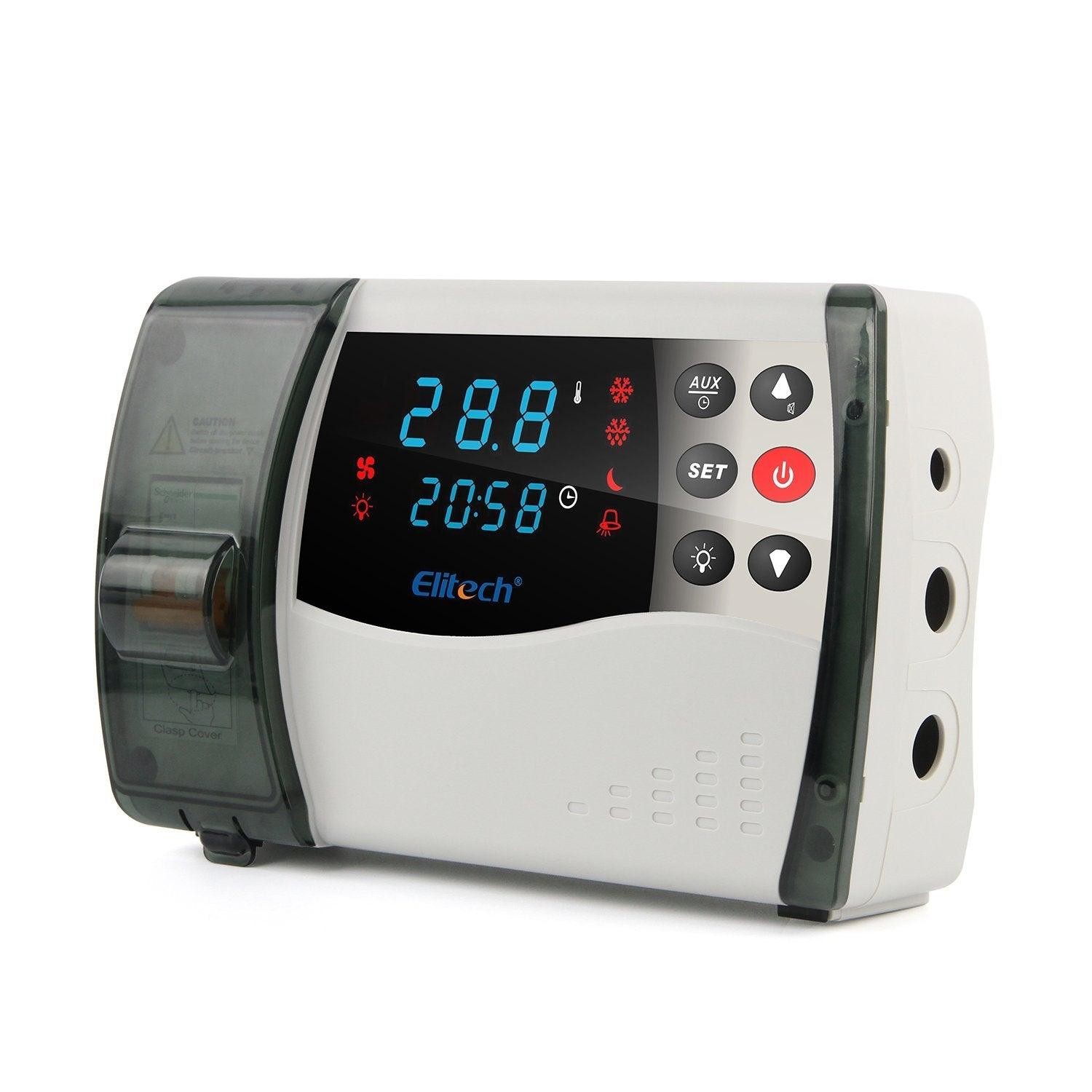

Elitech ECB-1000Plus electric control panel is a plastic shell electric control box with a single-phase power supply, suitable for temperature control with refrigeration, defrost, fan, light, and alarm output. The compressor relay capacity is 50A/240VAC, can directly drive a single-phase compressor 3HP. With Force defrost ultra-high temperature alarm, ultra-low temperature alarm, sensor fault alarm, and time display functions.

It also has a Fahrenheit Celsius conversion function, and It supports Modbus RTU communication mode and can be remotely controlled through the 485 interfaces.

Elitech ECB-1000Plus electric control panel is suitable for temperature control of commercial and industrial refrigeration. Like following machines: beer dispenser systems, blast chillers, buffet displays, chest display coolers/ freezers, cold room, fish fridges, freezer counters, half-height chillers/freezers, ice cream freezers, minibars, serve over counters, storage chest freezers, topping shelves, top-loading bottle cooler, upright display coolers/ freezers, upright storage freezers/ coolers, wall site freezers, wine display chillers, and back bar coolers. refrigeration devices of 3HP and below.

Advanced function -Night mode
Since the night air temperature is lower than the daytime temperature, an appropriate increase in temperature set-point at night can also achieve the same cooling effect as during the day. After the temperature increases, the working time of the device can be shortened accordingly, so as to achieve the purpose of energy-saving. cO8=1, ECO mode is enabled. Users can set the parameters to save energy.

Four-way signal input: temperature probe sensor, defrost probe sensor, Muti-function 1, Muti-function 2.

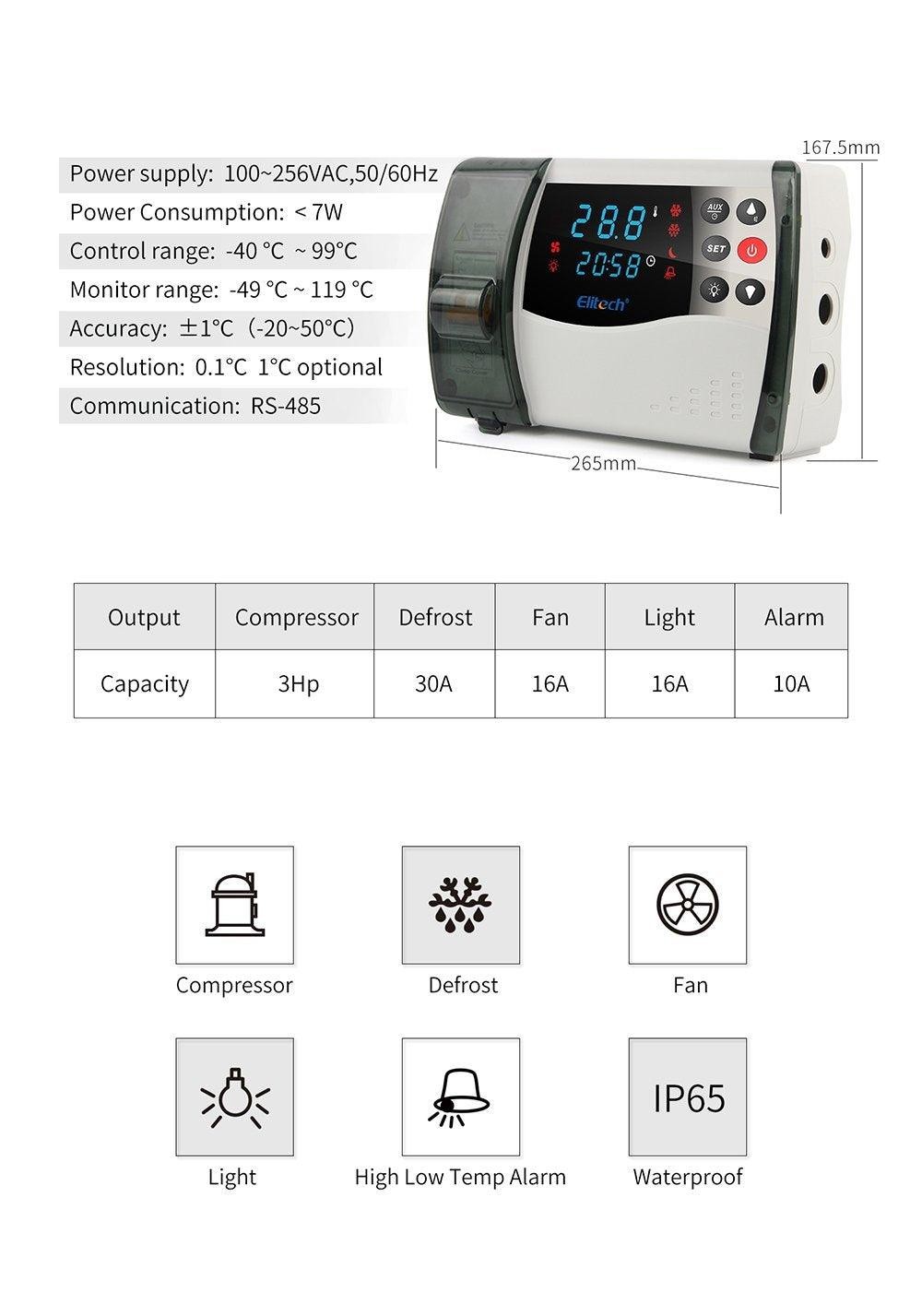

Five-way control output: compressor, defrost, fan, light, alarm.

Elitech ECB-1000Plus Function

Parameter

Feature

• Fahrenheit and Celsius conversion function.
• Possess 485 communication interface.

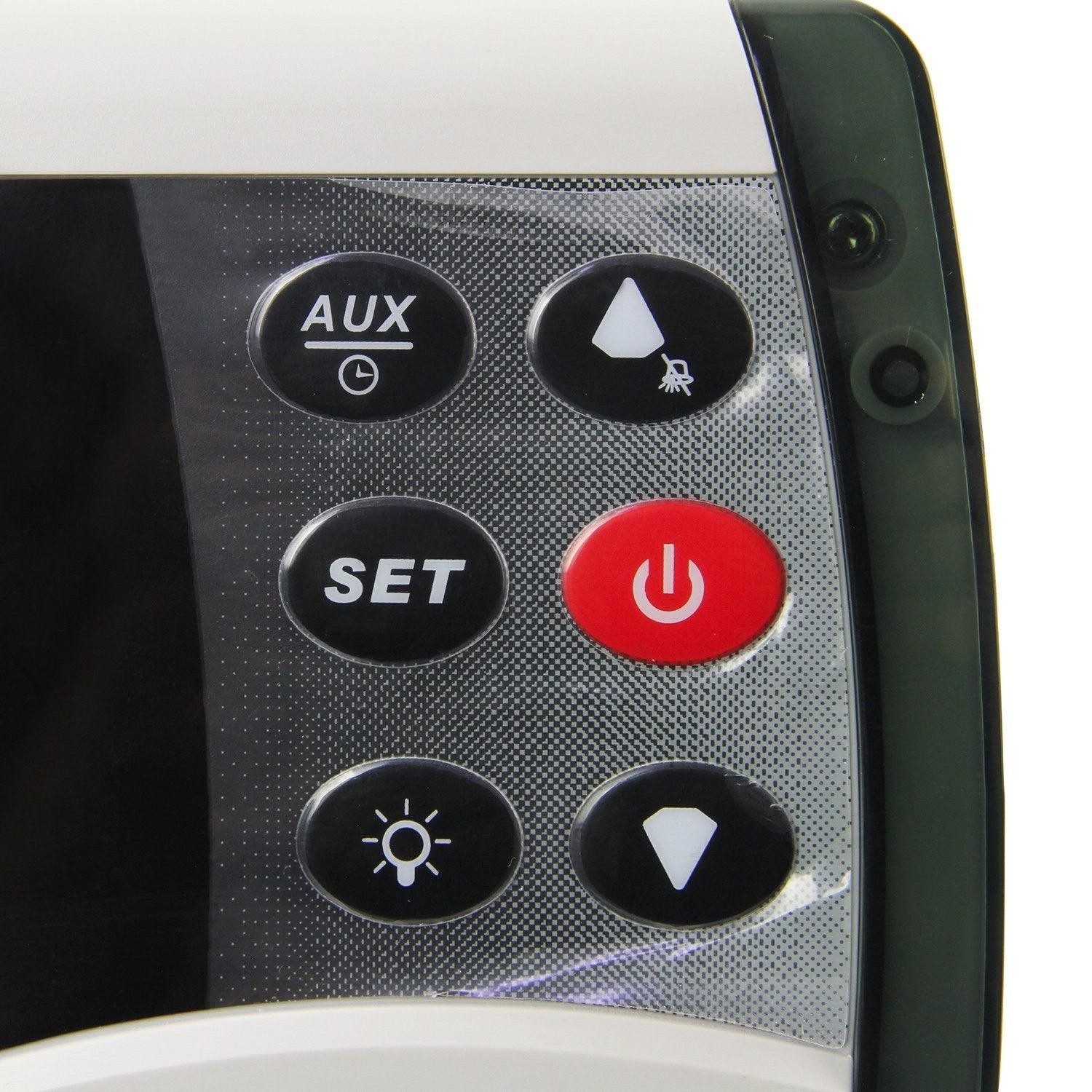

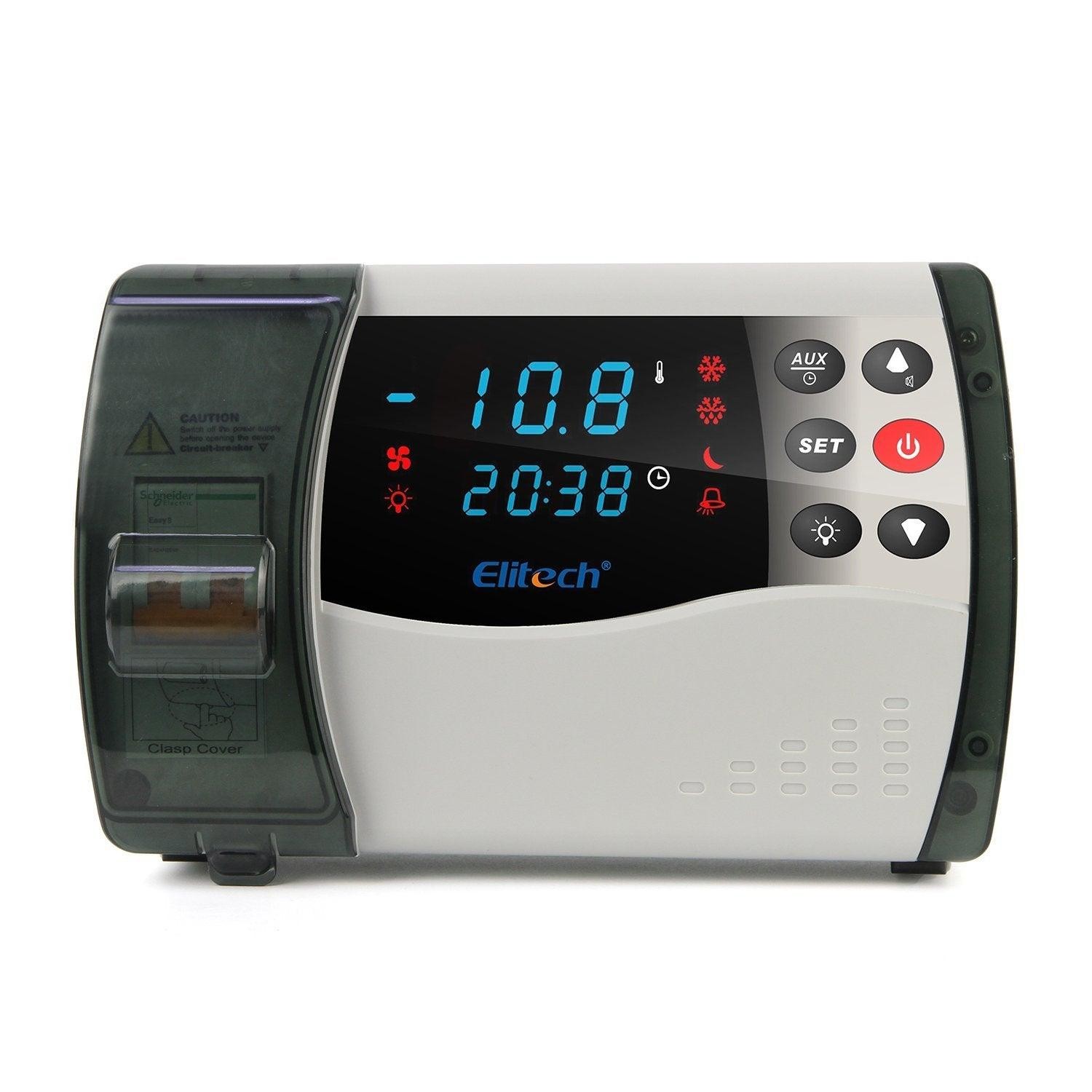

• Adopt an integrated design, equipped with dual LED displays, and 6 navigation keys to ensure that all functions can be clearly displayed.

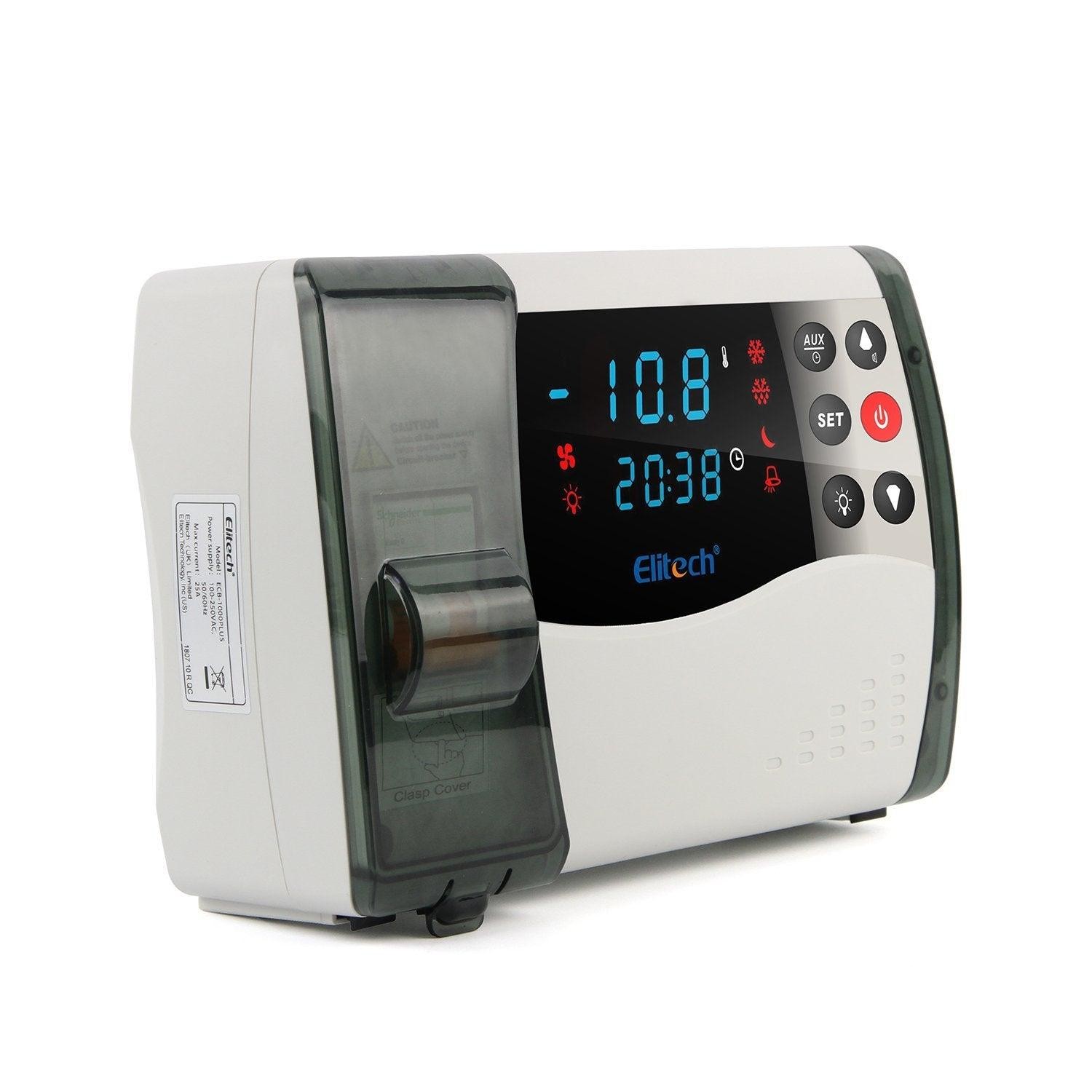

• The shell is made of ABS flame retardant material, which is waterproof and makes the electric control box more stable and reliable.
• Password protection, avoid misoperation by personnel.
• Waterproof, dustproof and shockproof.
• High/Low-temperature alarm, sensor fault alarm.
• Force defrost function.
• Beautiful appearance, simple operation.
• Energy night saving mode.
