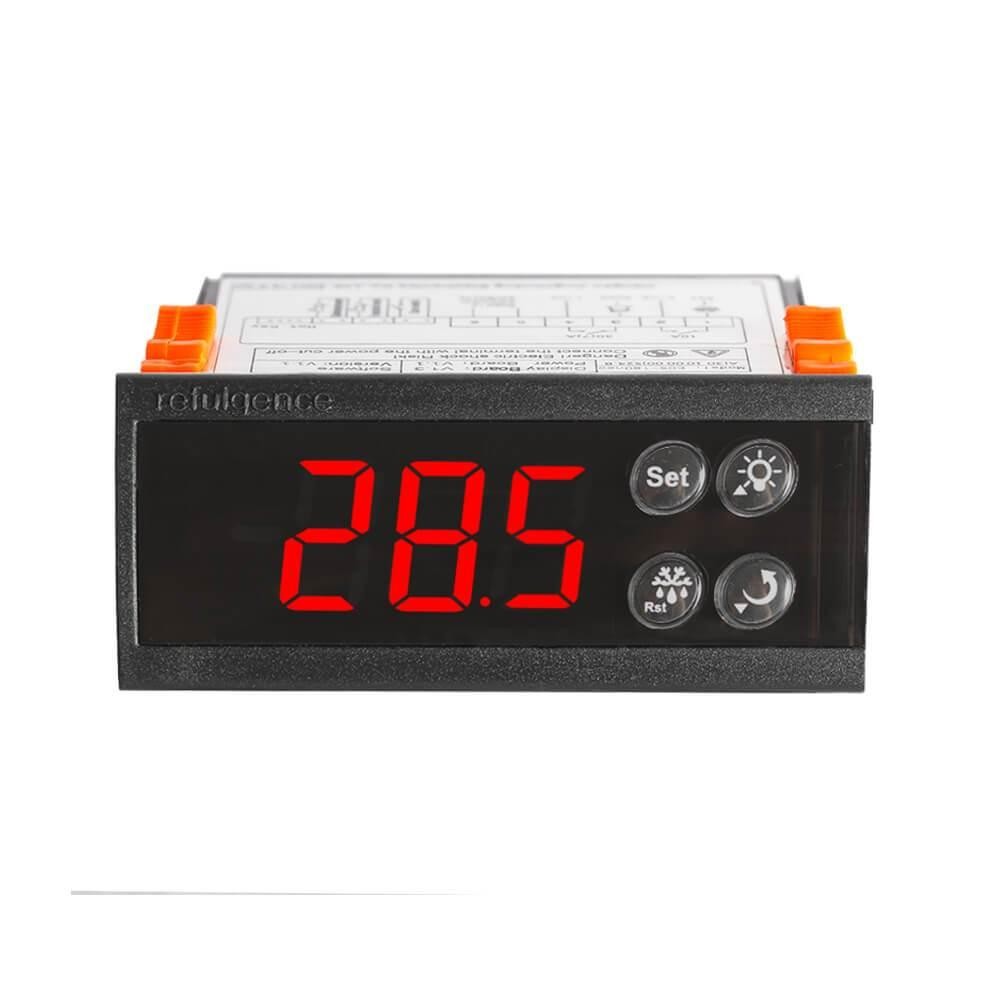

Elitech ECS-180neo Temperature Controller Refrigeration, Defrosting and Fan Control Output

Elitech ECS-180neo temperature controller is a small, high-precision, easy-to-operate temperature controller thermostat. Elitech ECS-180neo is available in two versions currently. ECS-180neo①, Two-way output: refrigeration(30A), defrosting(10A). ECS-180neo②,Three-way output: refrigeration(20A), defrosting(10A), fan(10A). When placing an order, select the appropriate serial number to ensure that you get the right product.

With temperature measurement, temperature display, temperature control, temperature correction, sensor fault alarm and Fahrenheit and Celsius conversion functions. And it has a Copycard function, which is convenient to set the same parameter for a large number of temperature controllers. If you are an equipment manufacture or after-sale service company, this will save time.

Elitech ECS-180neo temperature controller can be used for the medicine cabinet, kitchen cabinet, supermarket split cabinet, air curtain cabinet, island cabinet, convenience cabinet, wine cabinet, etc,

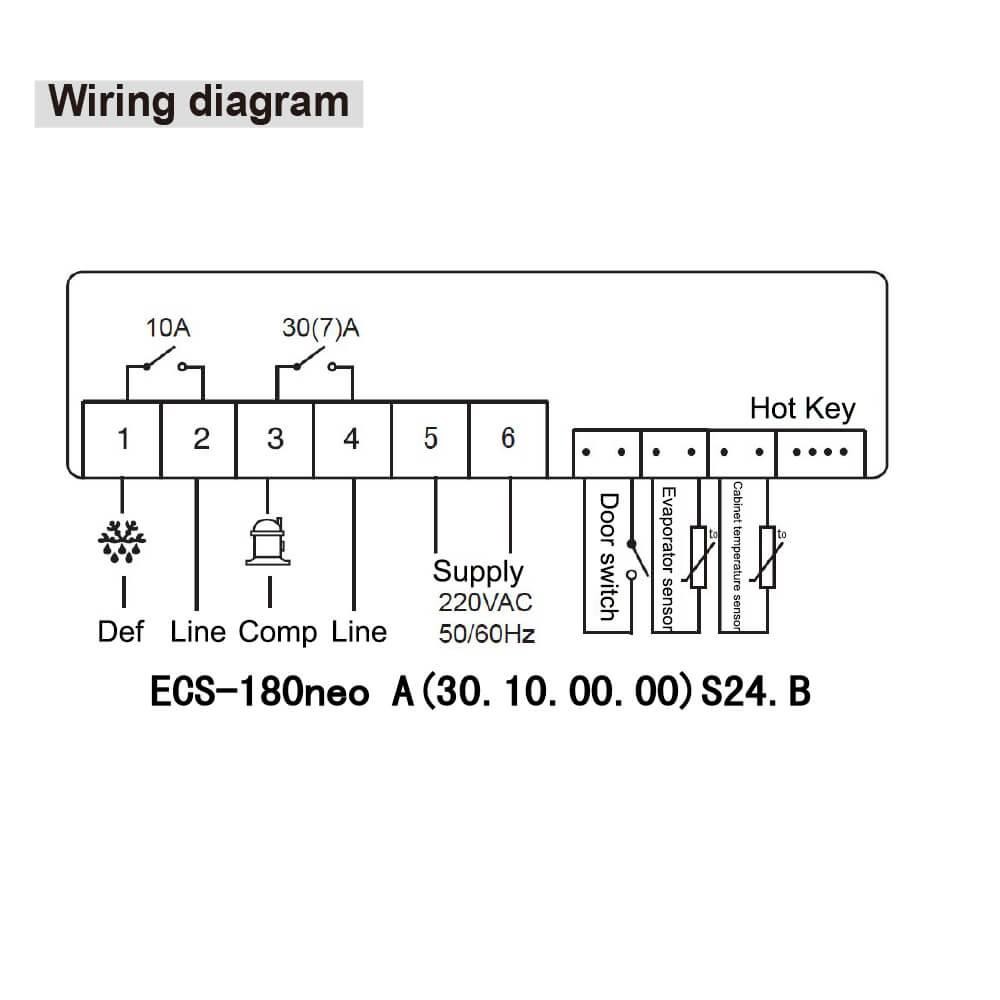

Two-way sensor input: temperature probe sensor, defrost probe sensor.
ECS-180neo①, Two-way output: refrigeration(30A), defrosting(10A).
ECS-180neo②, Three-way output: refrigeration(20A), defrosting(10A), fan(10A).

Elitech ECS-180neo① Function

Elitech ECS-180neo② Function

Parameter ( ECS-180neo①)

Parameter ( ECS-180neo②)

Feature

• Refrigeration relay output could reach 30A/240VAC, which could directly drive a single-phase 1.5Hp compressor.
• Copy card function, convenient for the manufacturing and after-sale service of equipment manufacturers.
• The temperature measuring unit could switch between Celsius and Fahrenheit.
• Pass EMC test, industrial level four test, stable and reliable
• Sensor fault alarm

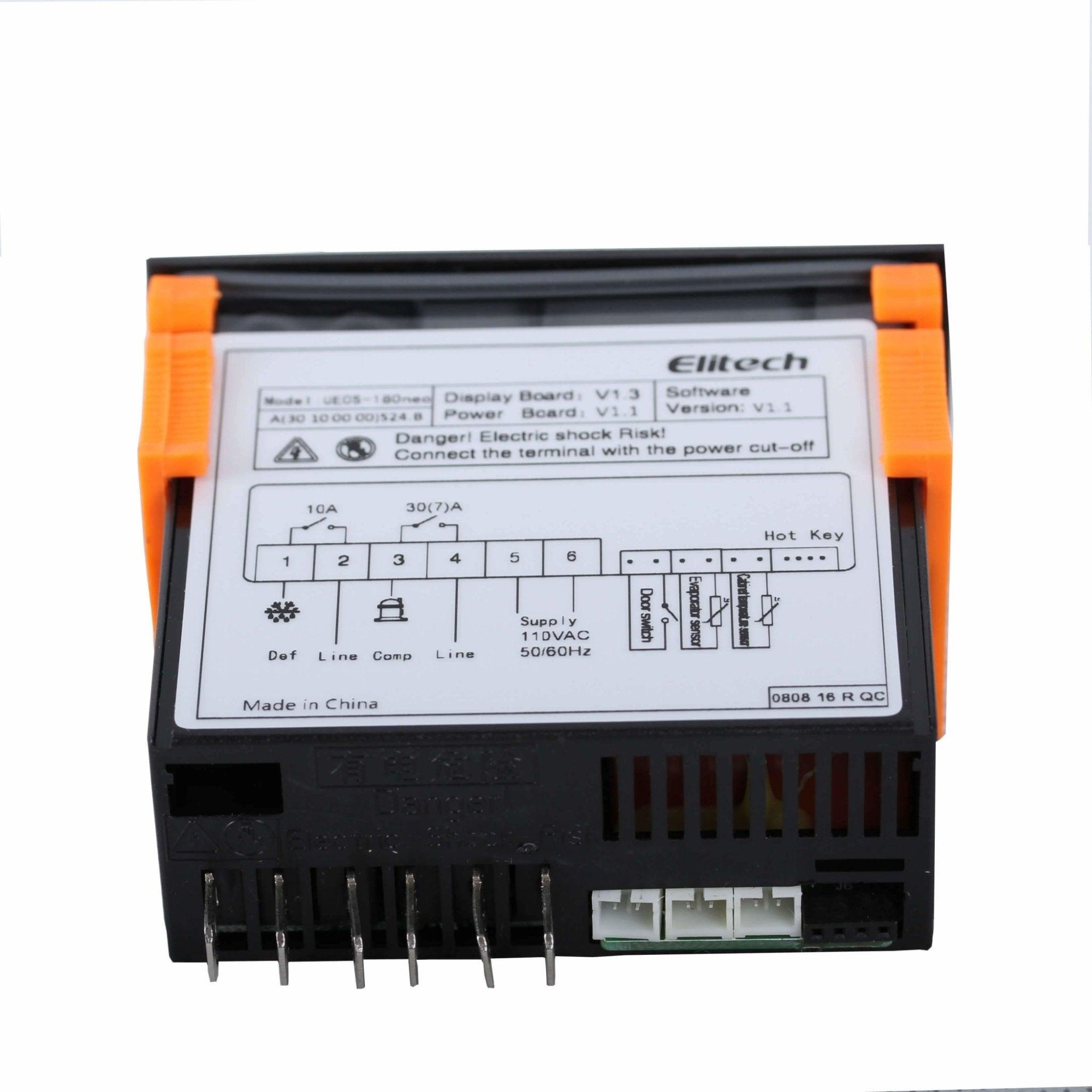

• Plug-in terminal wiring

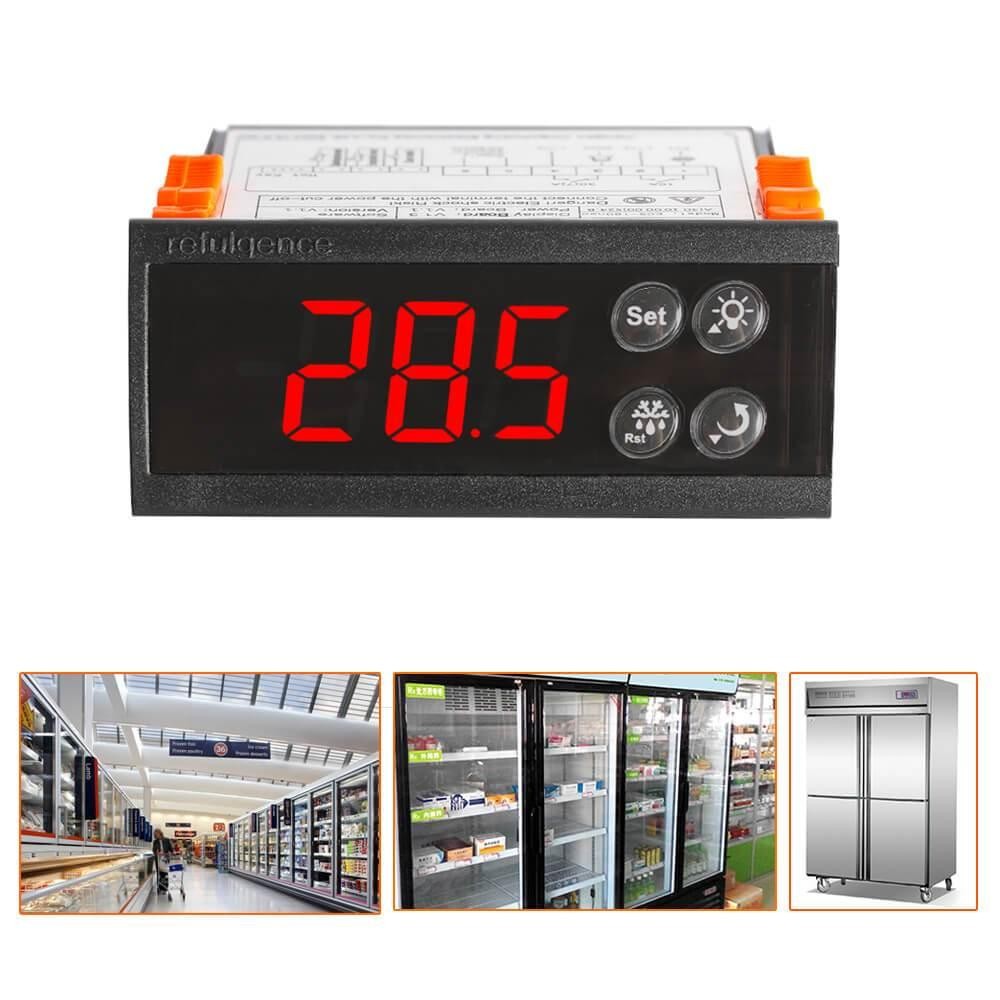

Application

• Medicine cabinets
• Supermarket split cabinet
• Air Curtain Cabinet
• Kitchen cabinet
