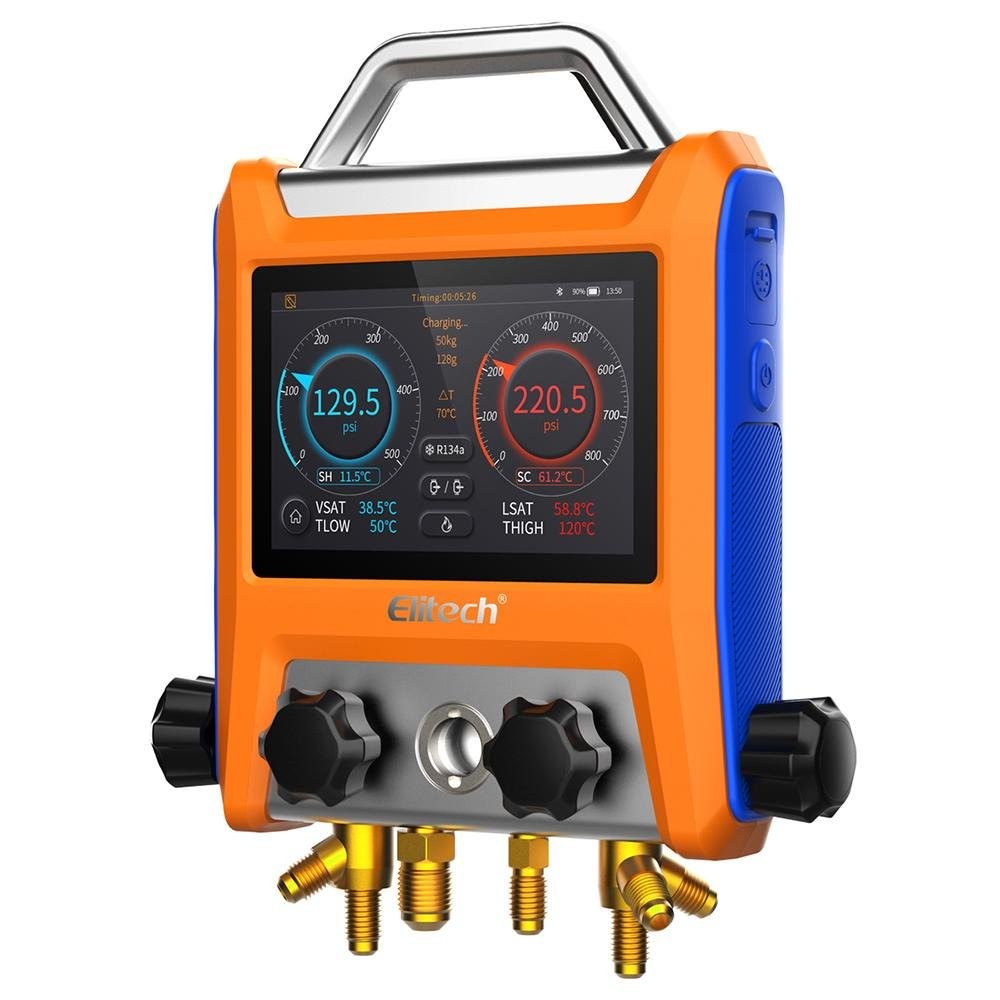

Elitech EMG-40V Intelligent HVAC Digital Manifold Gauge 4-Way Valve with Micron Gauge Transmitter

Elitech EMG-40V Intelligent HVAC Digital Manifold Gauge 4-Way Valve with Micron Gauge Transmitter

Category： Digital manifolds
INQUIRY EMAIL

Elitech EMG-40V, the digital manifold gauge with a 4-way Valve and responsive touch screen supports 88 refrigerant types. Fully automatic measurement of subcooling and superheating. Remote view temperature and pressure values via Elitech Tools on the phone.

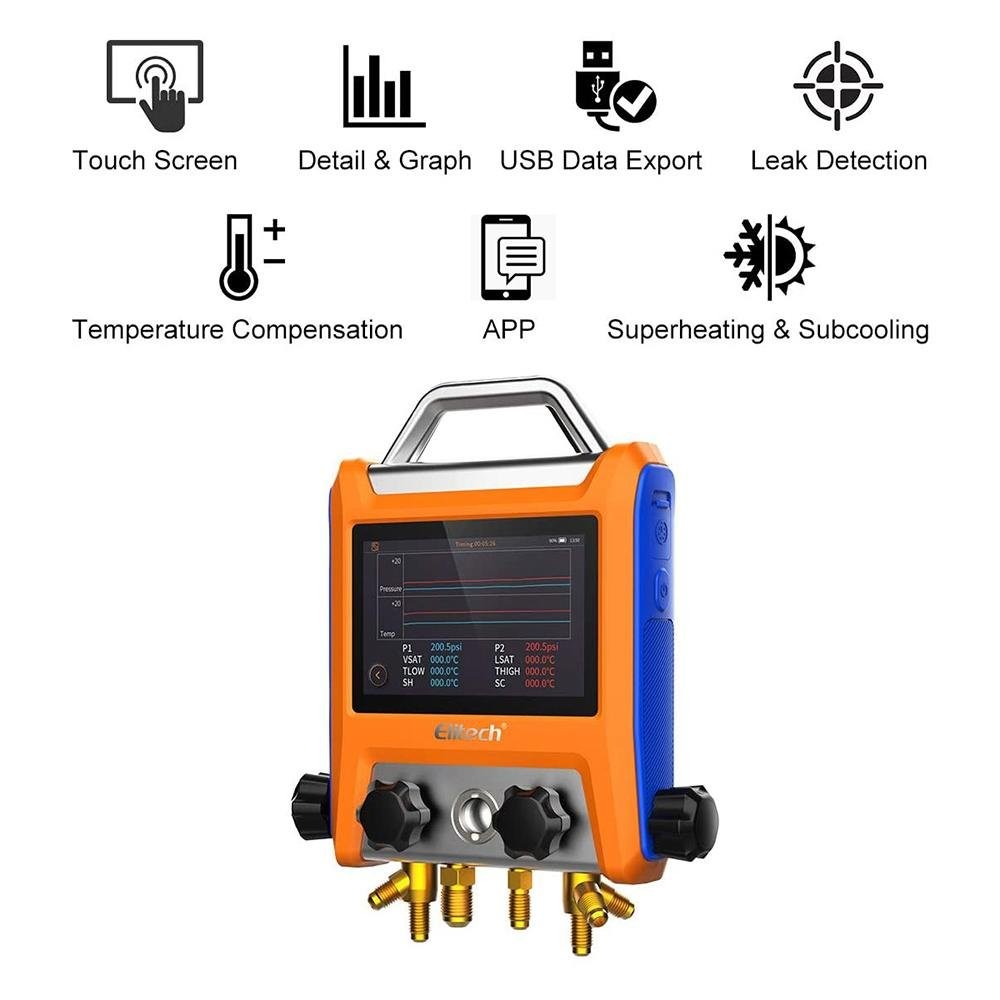

Key Feature:

5" Smart Touch Screen: Shows changes in vacuum, pressure, and temperature in clear data, graph, and display
Track Work via Elitech Tools APP: Real-time data monitoring and analysis; 100,000 Points of Data Easily Exported; Take Notes of Job, Time and Date Faster
System Leakage Testing: Intuitive and efficient analysis & Monitoring of the process of pressure holding and vacuum leakage test precisely with temperature compensation
Automatic calculation: Measure the superheating and subcooling temperature of 88 refrigerants automatically
Convenient: 4-way valve and automatic heat pump mode design, a quick and easy application that works without switching refrigerant hoses
Service: 1-year warranty. 30 days free & easy return

Technical Parameters:

Pressure Measuring Range	-14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
Accuracy	0.5%FS
Resolution	0.1psi/0.1kg/cm2/0.1bar/0.01MPa
Pressure unit	psi, inHg, kg/cm2, cmHg, bar, kPa, MPa
Data Sampling Frequency	0.5s
Overload	1000psi/70kg/cm2/69bar/6.8MPa

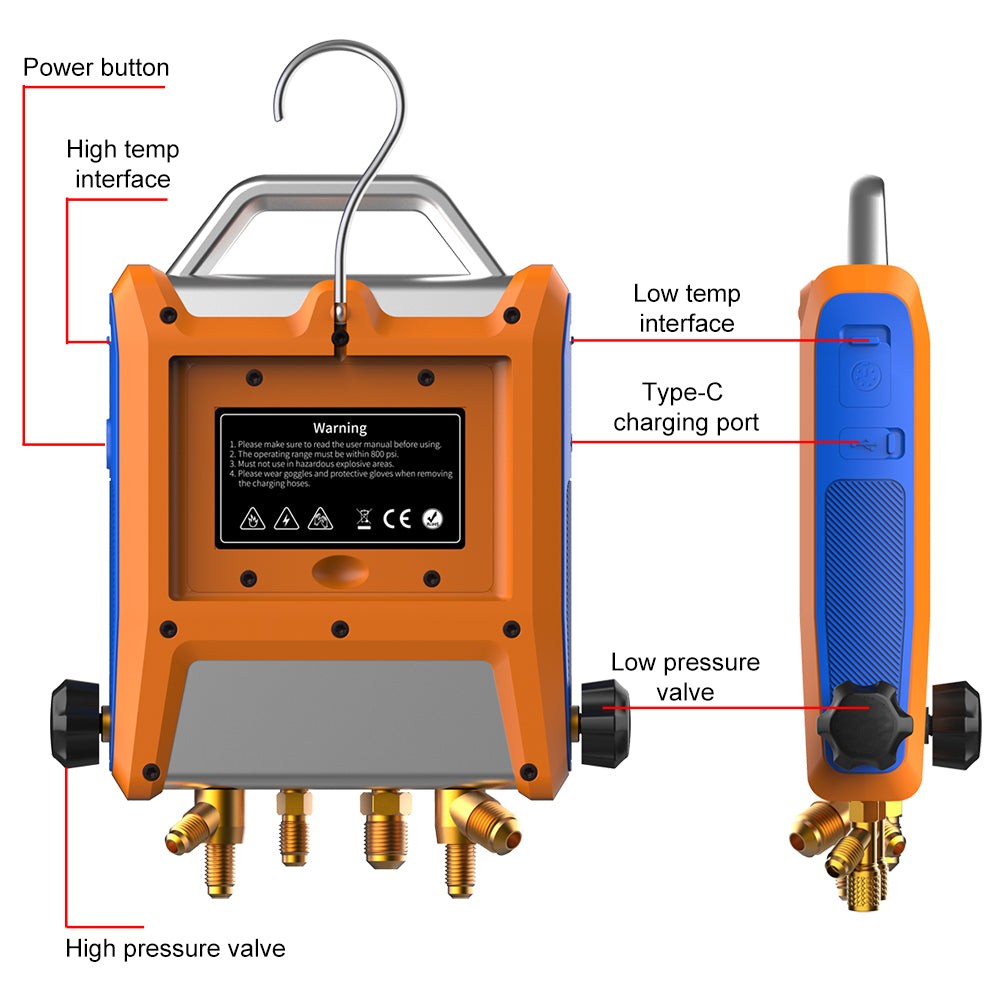

Pressure Interface	1/4 SAE * 3 and 3/8 SAE*1
Sensor Interface	PS/2 * 2(the left interface is temperature and vacuum probe multiplexing)
USB Interface	Type-C * 1 (for data export and charging)
Charging Parameter	5V2A
Battery Capacity	5000mAh
Recording Time	800 hours （log interval - 30 seconds）
Screen	5" IPS capacitive touch screen
Wireless Transfer Distance	98.4ft(30m)
Dimensions	10.00"8.46"2.80"(254mm215mm*71mm)
Weight	3.8lb/1.73kg
Working temperature	-14~122°F/-10~50°C
Storage temperature	-4~140°F/-20~60°C

Vacuum Parameters:

Vacuum measurement range	1-19000 microns
Accuracy	1-10000 microns:±10% of reading / +10 microns 10000-19000 microns:±20% of reading
Resolution	0-400 1 micro 400-3000 10 micros 3000-10000 100 micros 10000-19000 250 micros
Vacuum unit	micron、inHg、Torr、psia、mbar、mTorr、Pa、kPa
Interface	1/4 SAE port

Temperature Clamp:

Temperature Measurement Range	-40~302°F/-40~150℃
Accuracy	±0.9°F/+0.5℃
Resolution	0.2°F/0.1°C
Temperature unit	F/°C/K

Refrigerant List:

R113 R114 R115 R116 R12 R123 R1233ZD R1234ZE R1234YF R124 R125 R13 R134a R14 R141B R142B R143A R152A R170 R22 R23 R236FA R245FA R290 R32 R401A R401B R401C R402A R402B R403B R404A R406A R407A R407B R407C R407D R407F R408A R409A R410A R410B R412A R413A R414A R414B R416A R417A R417C R420A R421A R421B R422A R422B R422C R422D R424A R426A R427A R428A R429A R434A R437A R438A R441A R443A R448A R449A R450A R452A R452B R453A R454A R454B R455A R458A R500 R502 R503 R507A R508A R508B R514A R600 R600a R601a R718 R744

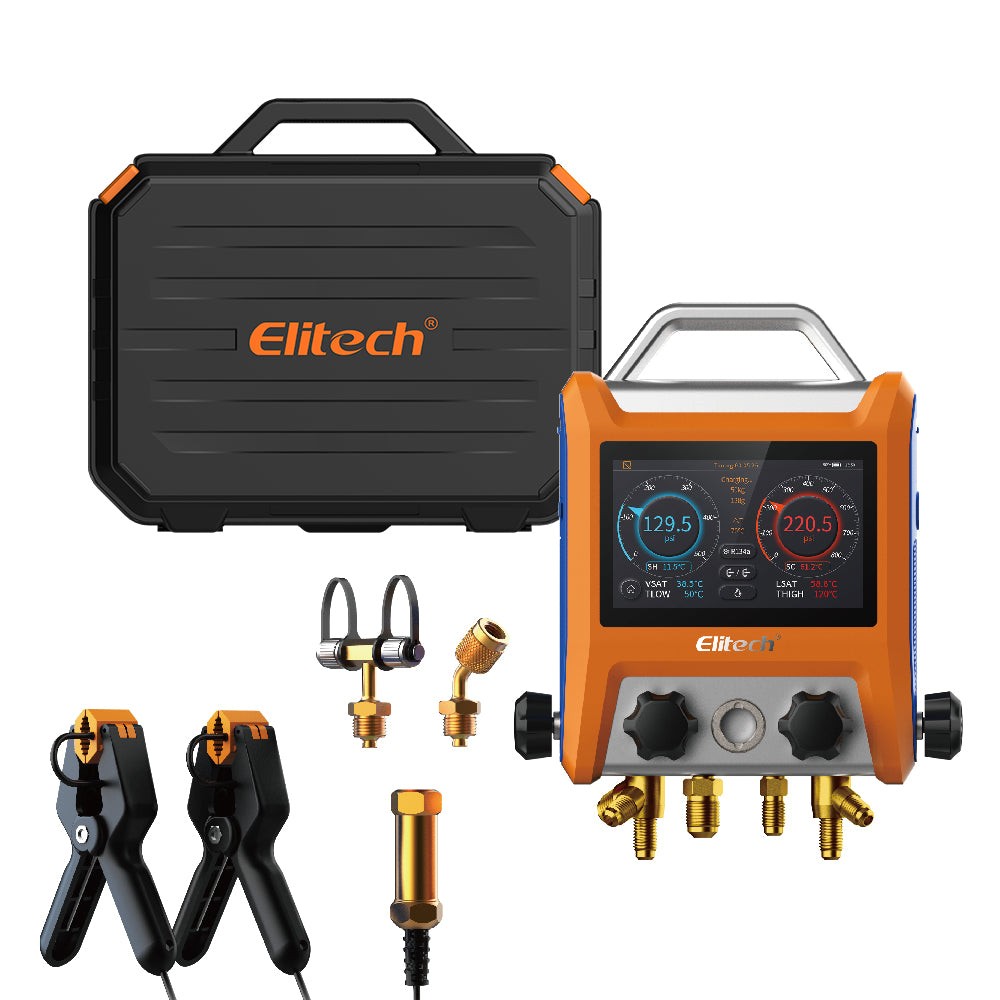

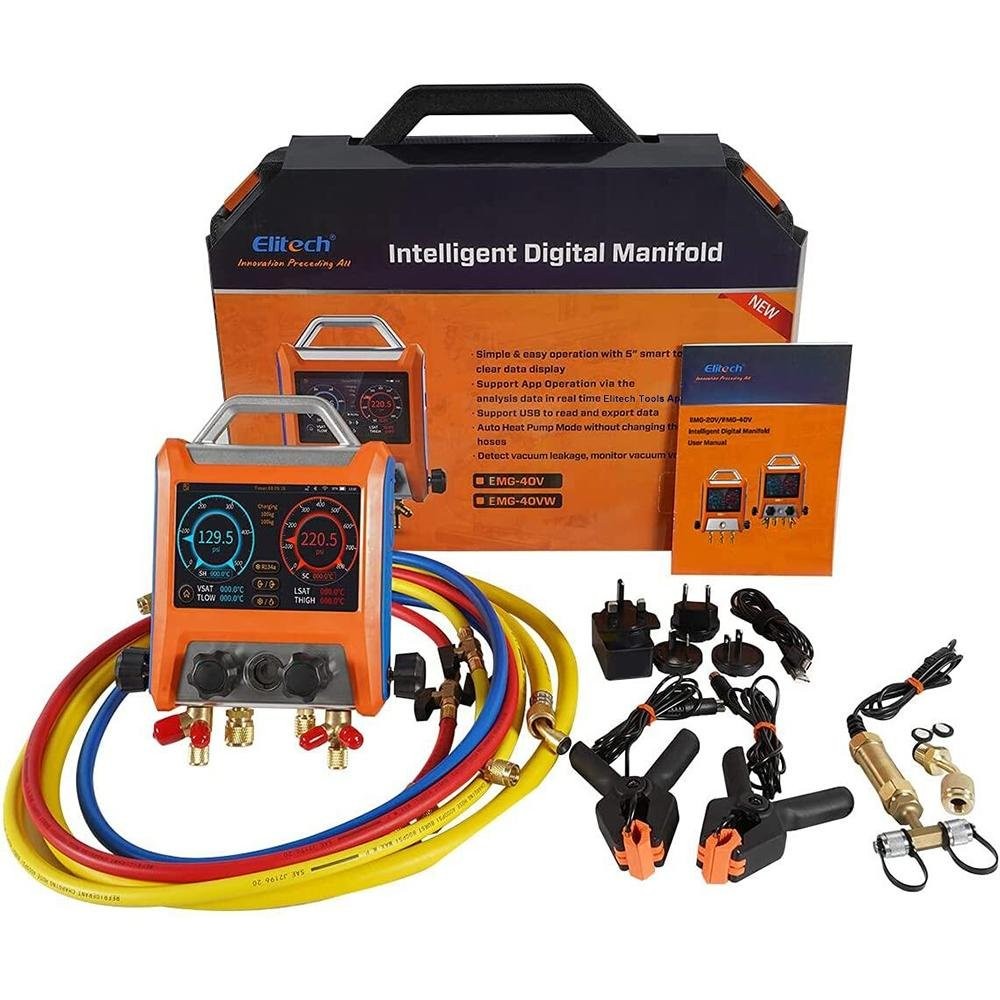

Packing list

1 x Vacuum transmitter(T-joint)

2 x Temperature clamp

1 x Bent joint

3 x Refrigerant hose

1 x Universal power adapter

1 x USB-C cable

1 x User Manual (Download)

1 x Portable durable case

Details

Pressure & Temperature measurement: On the Elitech EMG- 40 large screen, the customer can have a clear view of saturation temperature. The unit also provides automatic calculation of superheating and subcooling. The mode of refrigeration and heating can be easily switched. Clear view

Built-in Micron Gauge: The EMG- 40 counts with a vacuum transmitter, it can be connected to a vacuum pump and allows the HVAC technicians to monitor the changes in the vacuum in real-time. Estimation completion time evacuation, and vacuum leakage test.

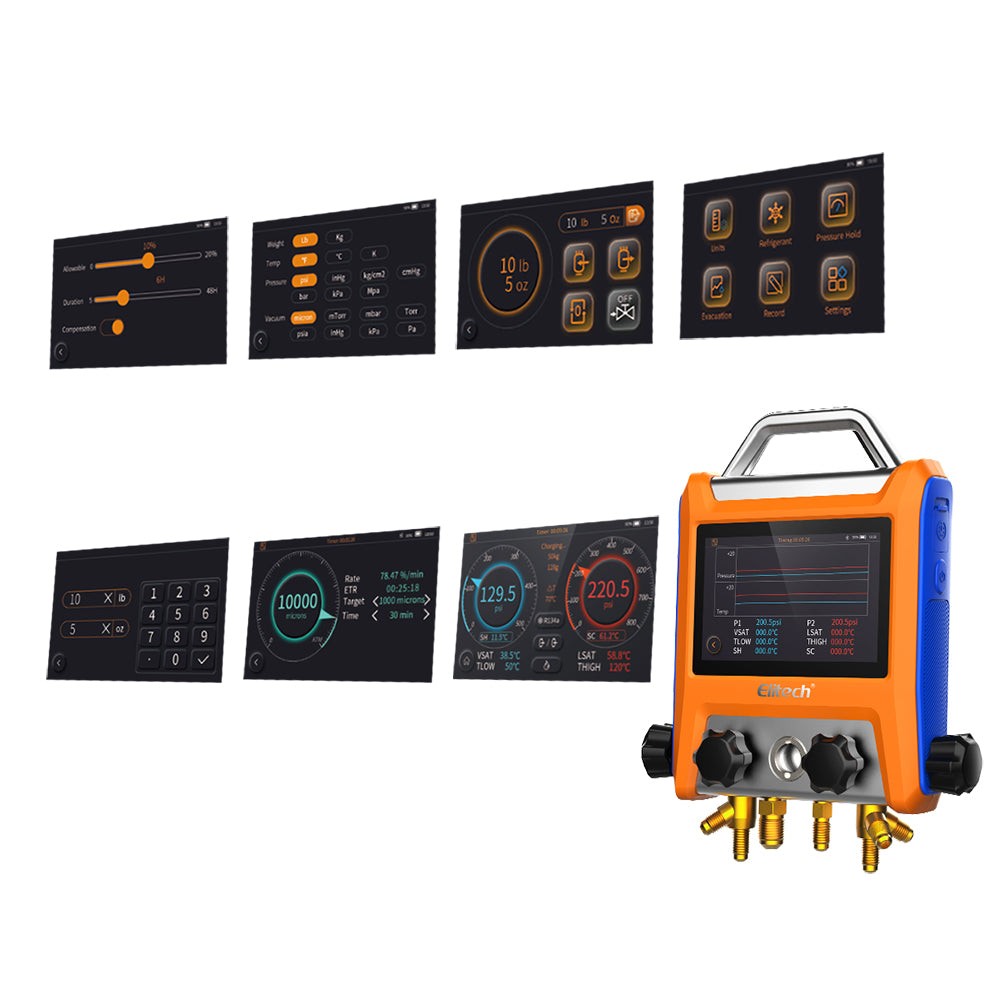

Unit Settings: Weight can be measured in Kg or Lb. Temperature units are Celcius, Fahrenheit, and Kelvin. Pressure Measurements are psi, in Hg, kg/cm2, cmHg, bar, kPa, Ma. Vacuum measurement: micron, mTorr, mbar, Torr, psi, inHg,kPa and Pa

Pressure holding measurement: Pressure maintenance leakage, set pressure decay ratio, pressure holding time, support temperature compensation.

Dial Curve: The EMG-40 allows the user to view temperature and pressure in the dial curve.

Accurate leakage detection: Pressure holding and temperature compensation to obtain accurate leakage detection

Refrigerants: The Elitech digital manifold supports more than 80 types of refrigerants and 20 types can be added to the favorites list, allowing users to easily find the refrigerants they need

Pressure Holding Settings: The EMG-40 has the option to record or not the pressure work, also the user can set the recording interval and delete previous records.

Product Comparision:
