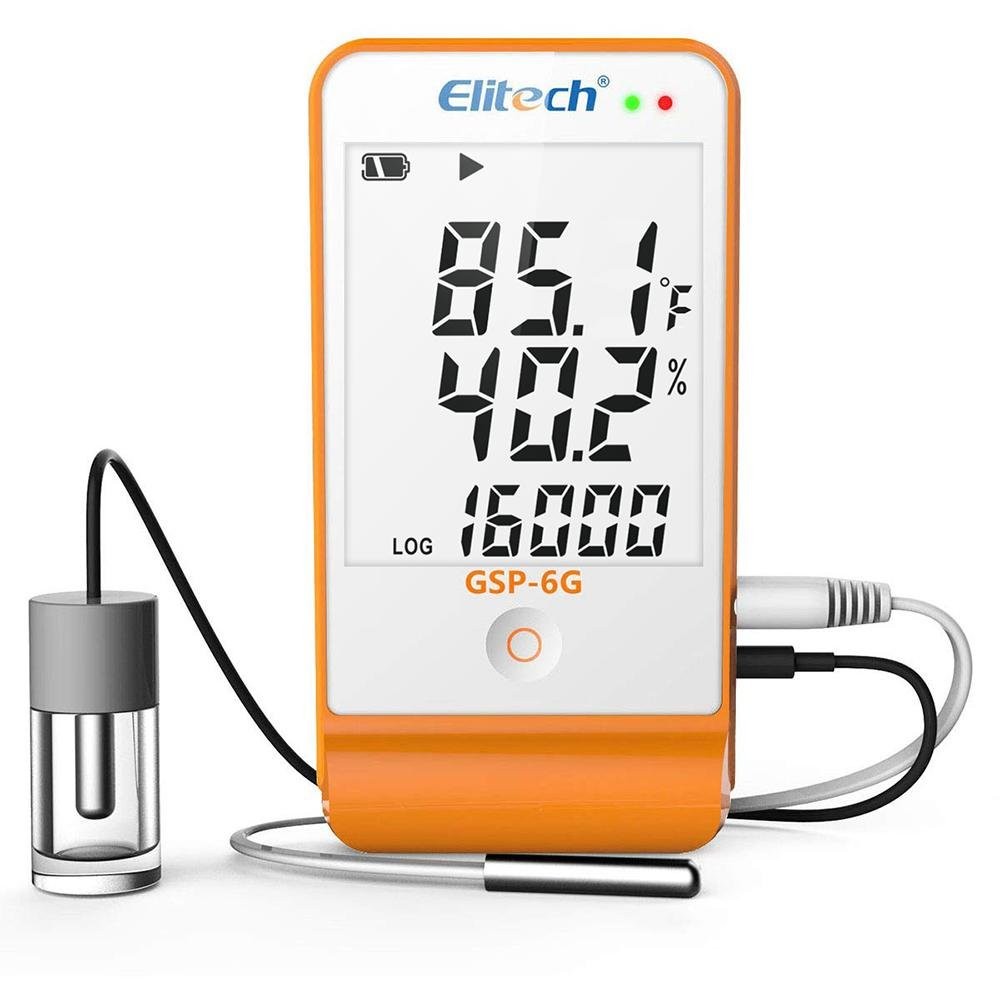

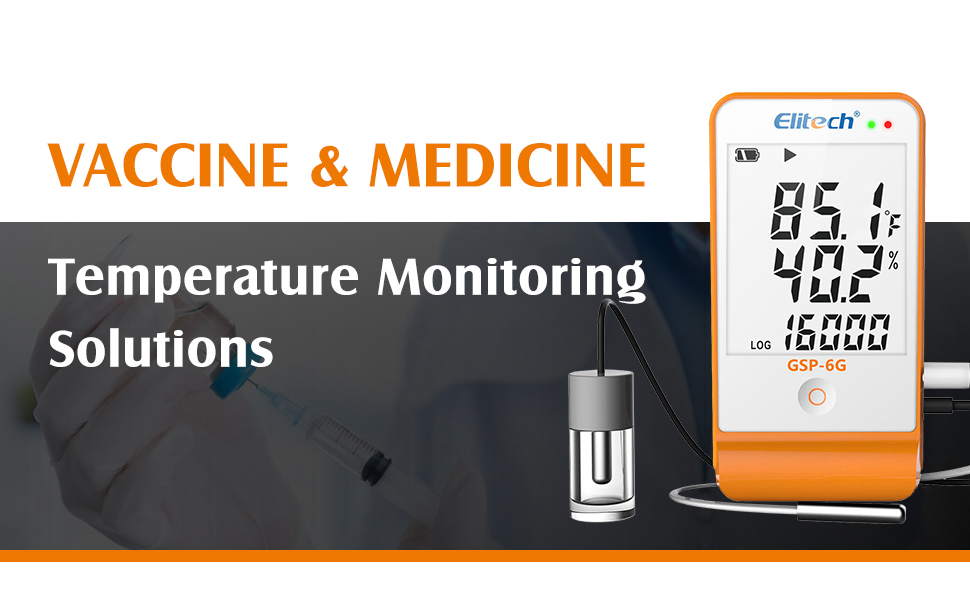

Elitech GSP-6G Digital Temperature and Humidity Data Logger with Detachable Buffered Probe with Calibration Certificate

Elitech GPS-6G, temperature and humidity digital data logger is a continuous temperature monitoring device mainly used in pharmaceuticals, vaccines shipping and storage. The detachable propylene glycol bottle external temperature probe as a thermal buffer would reflect more accurate and stable readings, which is to simulate the vaccine storage condition. Max/Min value display on the large LCD screen makes monitoring easy and convenient.

With two modes to save data: full record stop and circular logging, the data logger gives audible and light alerts when the temperature is out of setting range. The logging interval can be customized depending on your need for convenience. Two pieces of built-in magnets are convenient to fix the data logger onto the metal material surface.

Key Feature

• Multi-use temperature and humidity data logger records up to 16,000 temperature points and 16,000 humidity points.

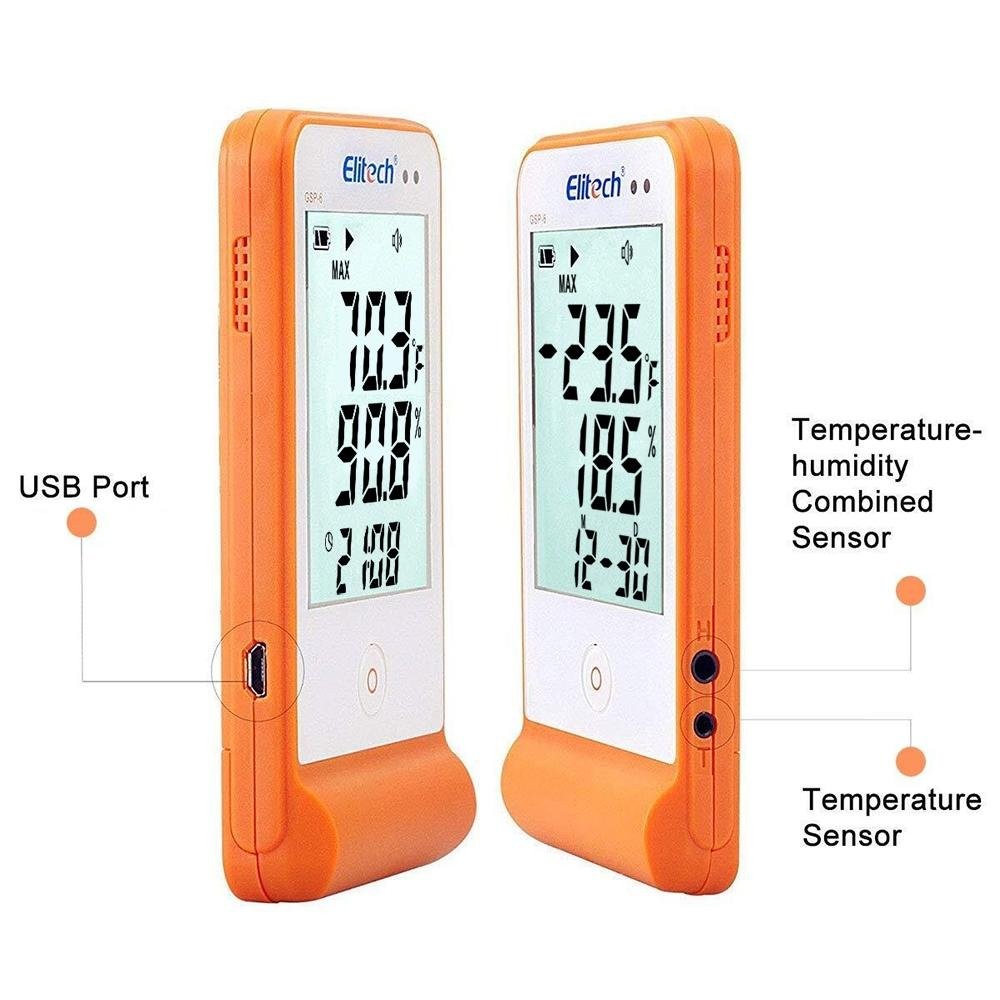

• 1 external detachable buffered temperature probe with glycol vial attached(3 meters) and 1 external temperature-humidity combined sensor probe(2 meters). Offering 3 different temperature-humidity measuring types (switch via free software ElitechLog).
• Wide temperature measurement range from -40℉ to 185℉, max. Accuracy up to ±0.5℉; Humidity measurement range from 10%~99%RH, max. Accuracy up to ±3%RH.
• Pre-programmed sampling rate and alarm limit in the free software ElitechLog.

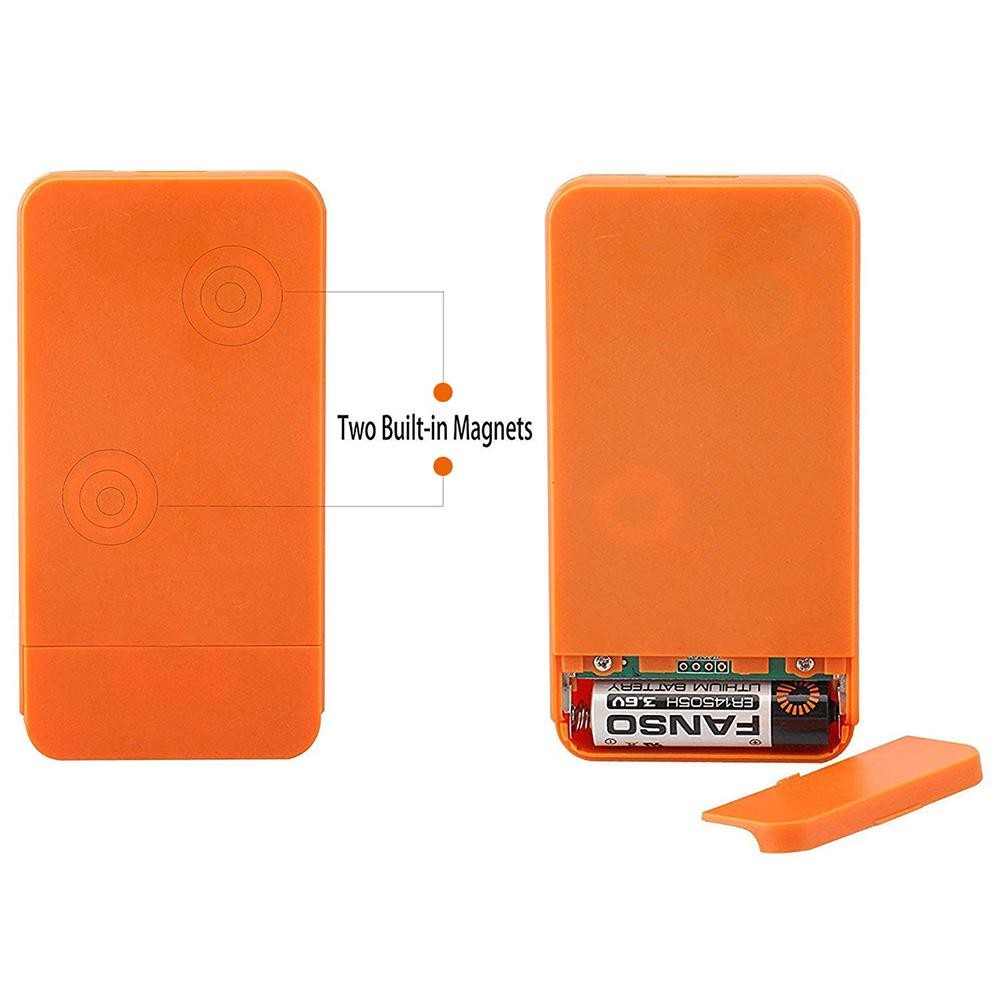

• Multi-Alarm notifications: Buzzer, LED Indicators, Screen Display. Two pieces of built-in magnets are convenient to fix the data logger onto the metal material surface.

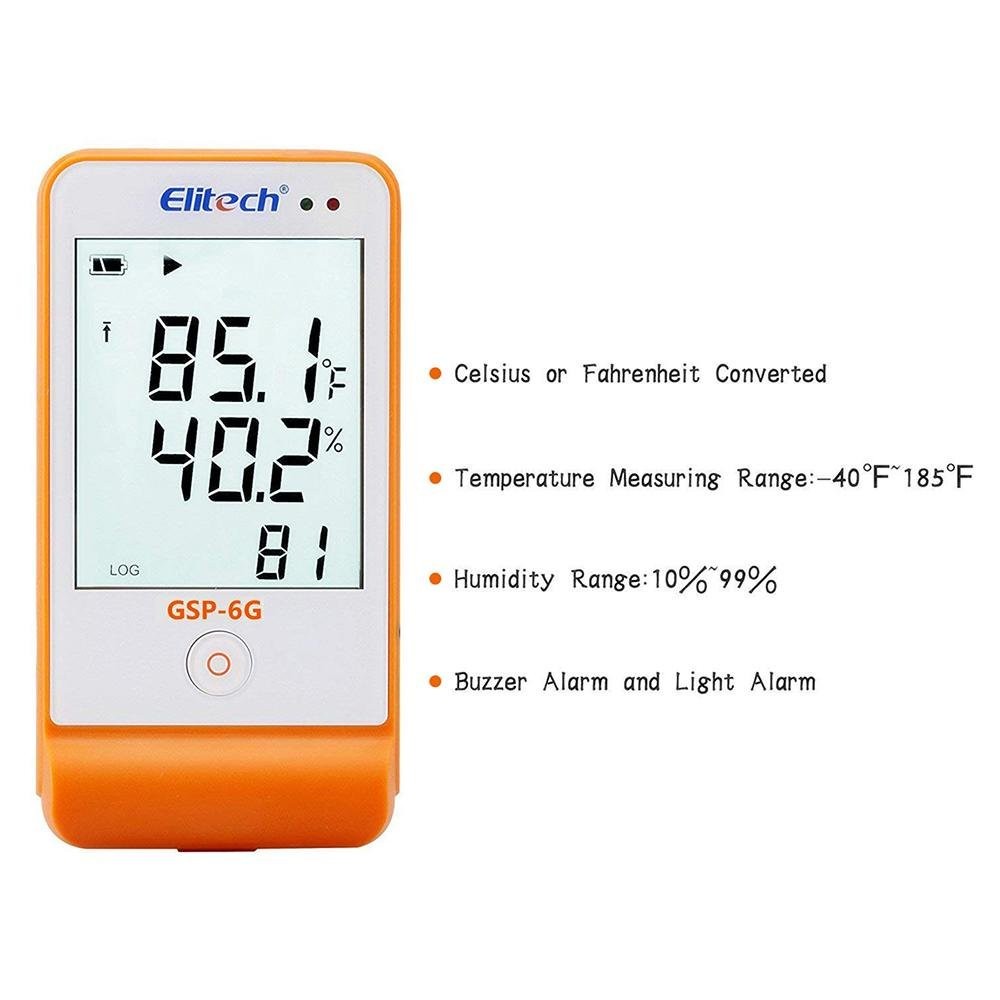

• The large LCD screen, convenient for direct viewings of key information including temperature and humidity data, alarm status and etc.
• 1-year warranty.

Parameters

• Temperature measuring range:-40℉~185℉ (-40 ℃~85 ℃)
• Temperature accuracy：±0.9℉/±0.5 ℃(-4℉~104℉/-20 ℃~40 ℃)；±1.8℉/±1℃(other)
• Humidity range:10%~99%
• Humidity accuracy:±3%RH(25℃,20%~90%RH);±5%RH (other)
• Resolution :temperature 0.18℉/0.1℃,humidity 0.1%RH
• Record capacity:16000 points (max)
• Record interval:10sec~24 hour continuously set
• Data interface: USB
• Power supply:single-use 3.6V lithium battery or powered via USB
• Battery life: 2 years at room temperature with 15 minutes record interval and buzzer alarm disabled.
• Ambient temperature:-22℉~158℉ (-30 ℃~70 ℃). In a low-temperature environment, the LCD screen displays normal records but a little slow. It will display data normally when the ambient temperature returns to normal.

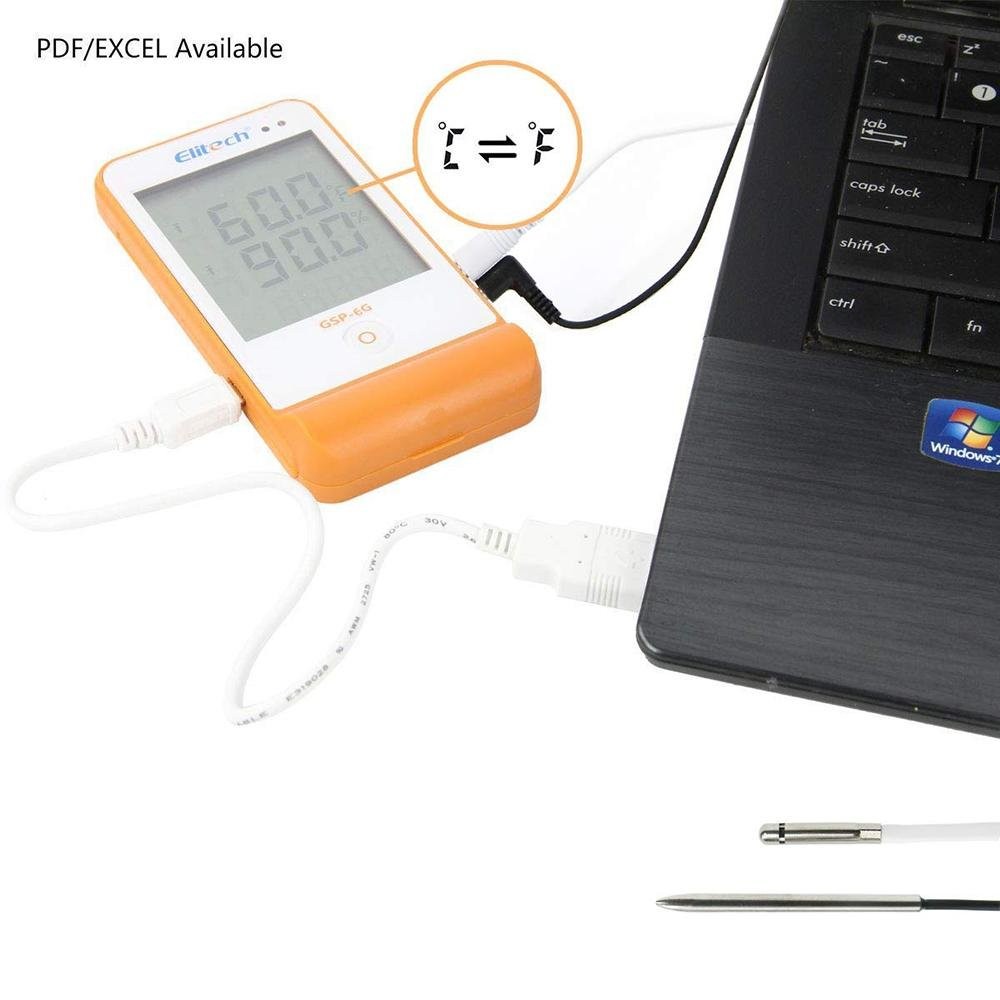

Mac/Win Supported Software

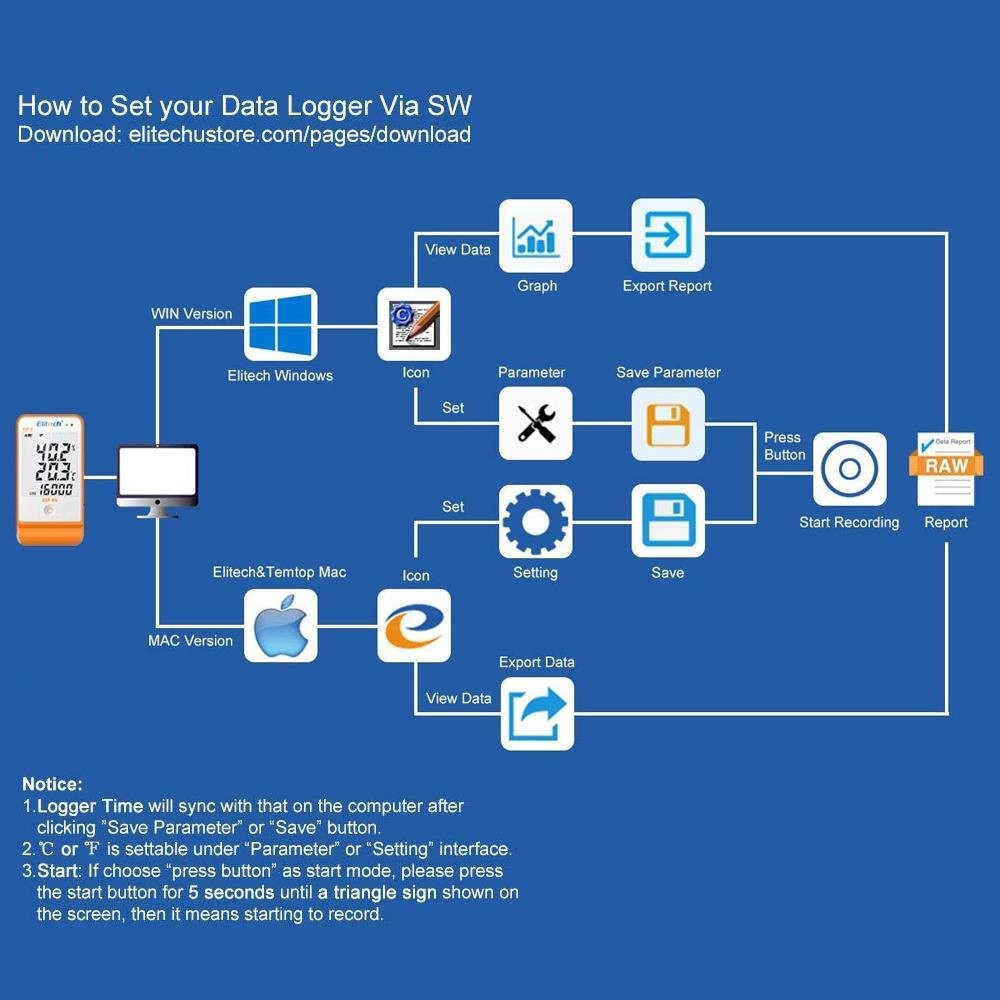

Please download the software here. Plug your device into your computer, go to Parameter to set up, including the device time, C/F temperature unit, logging interval, and alarm upper/lower limit. Go to Graph to see the data in curve and click Export Data to get the data report in PDF/XLS formats.

*Note:

- Clicking Save Parameter will reset your device, which means your data will be all cleared and your device is ready to restart then.

- The device cannot be restarted to log after you stop logging. Please reset the device in the software before every time you need to restart logging.

Error Code Meaning

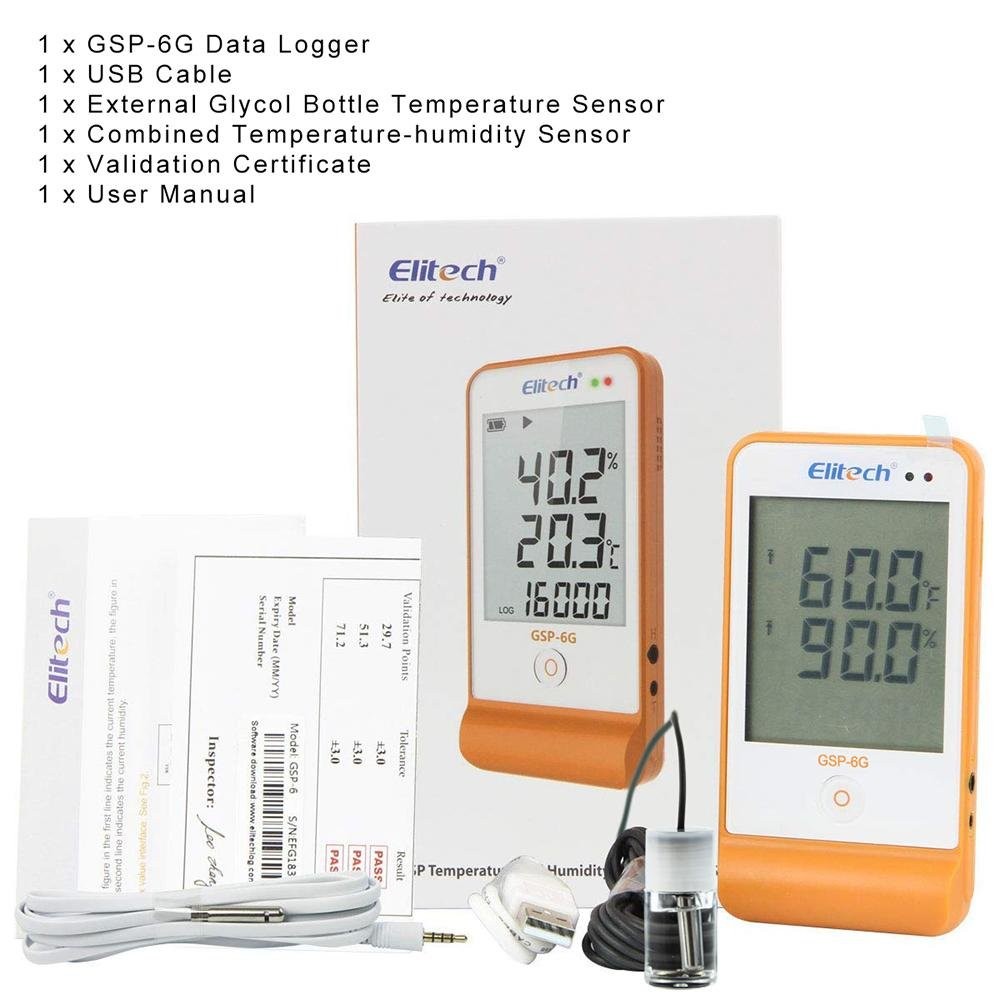

Package

• 1x Data Logger

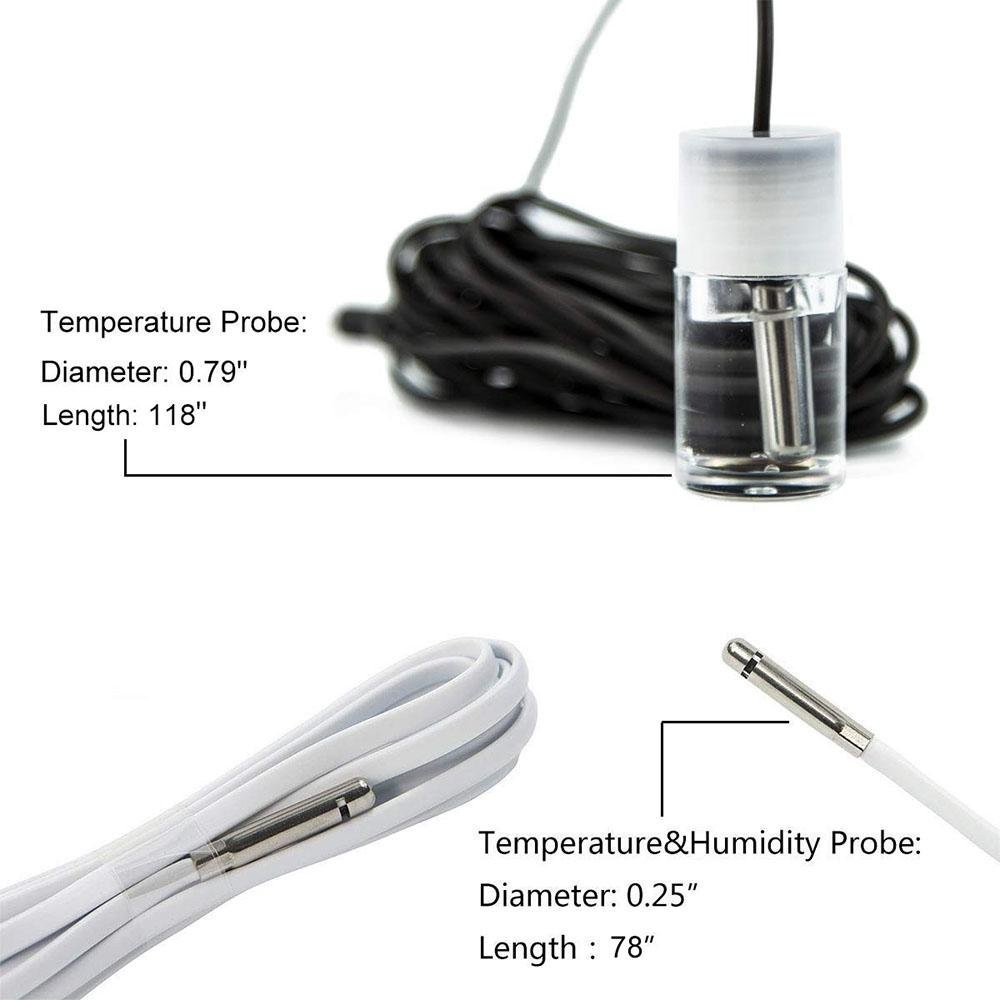

• 1x Propylene Glycol Bottle Temperature Probe (3 meters)
• 1x Temperature-humidity Combined Probe (2 meters)
• 1x USB Cable
• 1x User Manual (Download)
• 1x Calibration Certificate

How Does a Thermal Buffer such as Glycol Provide More Accurate Readings?

According to the CDC guidelines for vaccine storage, a detachable probe in a bottle filled with a thermal buffer, such as glycol, more closely reflects vaccine temperatures. As indicated before, vaccine temperatures have been found to be more thermo-stable than air temperature which fluctuates with door openings/closings and defrost cycles. Suspending a probe in a sealed glycol bottle helps to prevent intermittent air currents from throwing the readings off and averages out the temperatures of the surroundings, consequently reflecting the actual temperature of vaccines inside refrigerators.

Note:

• A calibration certificate issued by the Elitech quality department center is included with every data logger.
• For a certificate issued by a third party, please make sure to select "ISO 17025 Certified" in the variation when purchasing your data logger. This calibration certificate is issued by a laboratory that conforms to International Organization for Standardization (ISO) 17025 international standards for calibration testing and traceability.
