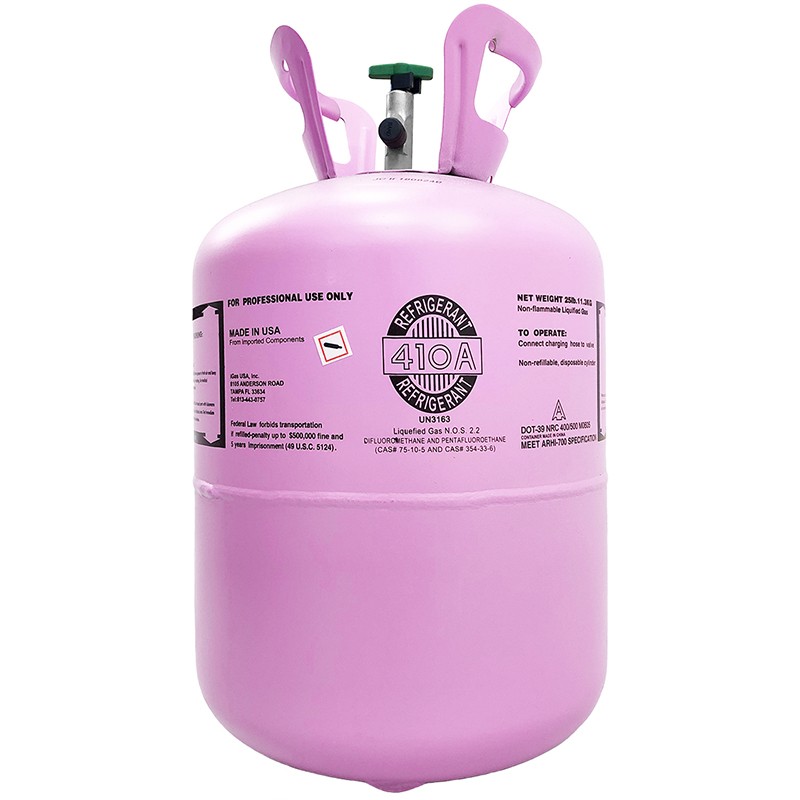

R-410A
Note: Truck load can be mixed to make a truck or mixed to make one pallet.

Application/Description:
R-410A is a blend of R-22 and R-125 that is 60% higher pressure than R-22 for air conditioning applications and should only be used in new equipment specifically designed to handle the pressure. Systems that are designed for R410A will have smaller components to perform the same cooling job as R-22. R410A will require POE lubricants. Retrofitting R-22 equipment is not recommended under any circumstances.

R-410A has replaced R-22 as the preferred refrigerant for use in residential and light commercial air-conditioning and heat pump systems. It has a higher cooling capacity than R-22 and is significantly higher in pressure. R410A was not designed to retrofit existing R22 systems and should be used only in systems specifically designed for R-410A. It is non toxic and non flammable meeting the highest A1 Classification.

Product Name
R-410A
Available Sizes
Disposable cylinder: 25lb/11.3kg;
Can:750G
Refillable cylinder: 12L, 926L, ISO TANK.

Chemical Name: R-125(50%), R-32(50%)
Chemical Formula: Blend
Refrigerant Type: HFC
Refrigeration Oils: Polyolester (POE)
Net Weight: 25 lbs. / 100 lbs. / 850 lbs. / 1,450 lbs.
Molecular Weight: 72.6
Boiling Point: (1 atm, °F): -61
Critical Pressure: (psia): 691.8
Critical Temperature: (°F): 158.3
Critical Density: (lb./ft³): 34.5
Liquid Density: (70°F lb/ft³): 67.74
Vapor Density: (bp, lb./ft³): 0.261
Heat of Vaporization: (bp, BTU/lb.): 116.8
Specific Heat Vapor: (1 atm, 70°F, BTU/lb. °F): 0.1953
Specific Heat Liquid: (70°F, BUT/lb. °F): 0.3948
Ozone Depletion Potential: (CFC 11=1.0): 0
Global Warming Potential: (CO2=1.0): 2088
ASHRAE Standard: 34 Safety Rating: A1
Temperature Glide: (°F): 2
